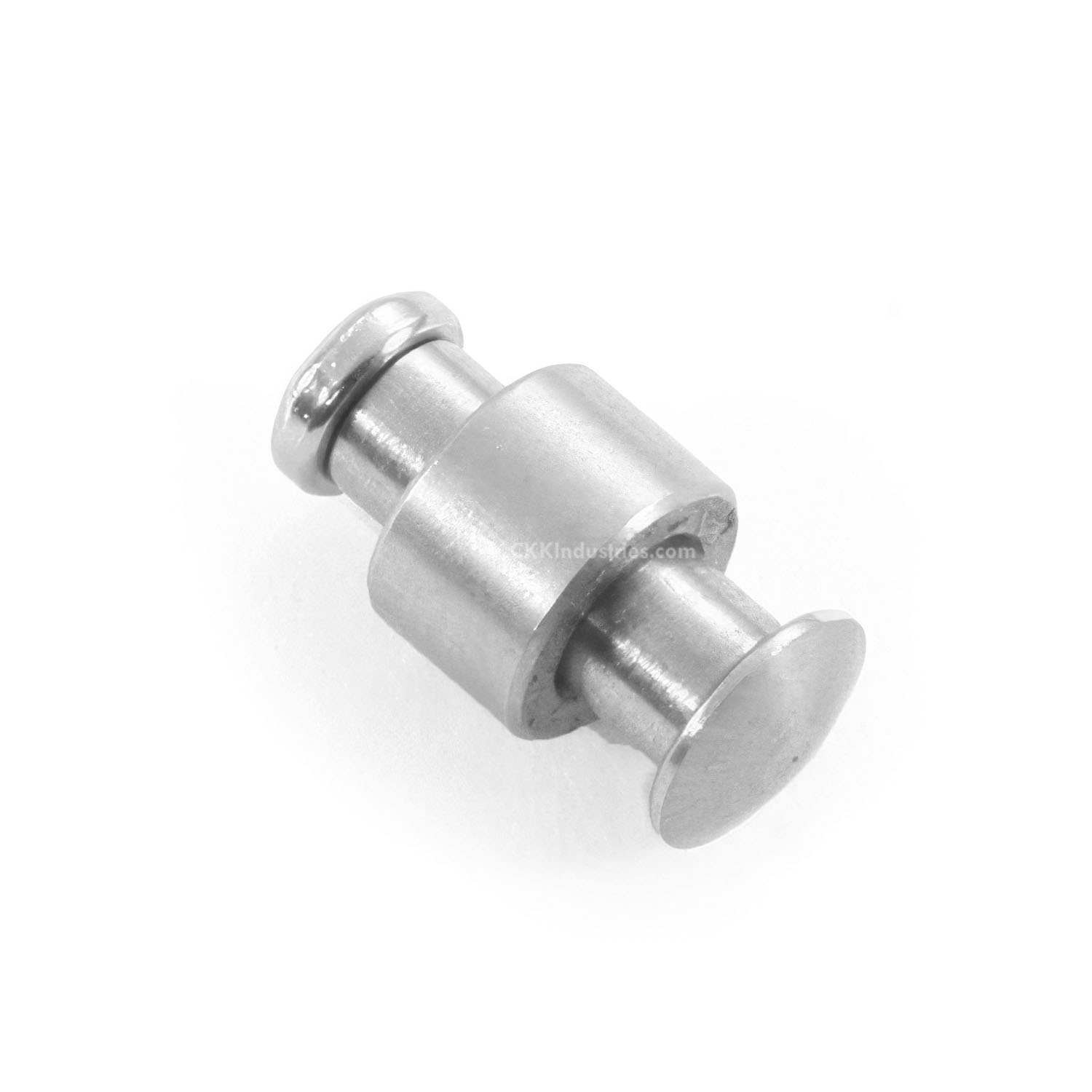

Our Precision Pivot Assemblies are designed by Darrel Ralph. These are for maker's who want the ultimate in "smooth" action! The ream size on this model is .140. The bushing is fitted to within .0002 to slip-fit the stud with the highest precision available. The bushing O.D. on this model is .240". This pivot/bushing system is made from hardened stainless steel and will turn a knife action into something that rivals a swiss watch! The screw thread size 4-40 for max performance.
Pivot Length - .360"
Pivot Diameter - .14000"
Pivot Head Diameter - .216"
Bushing I.D. - .14022
Bushing O.D. - .240
Screw - 4-40 BHT
140PPK-240 = .140 Precision Pivot Assembly with .240 O.D. Bushing
All KnifeKits.com pivots are heat treated for low wear.

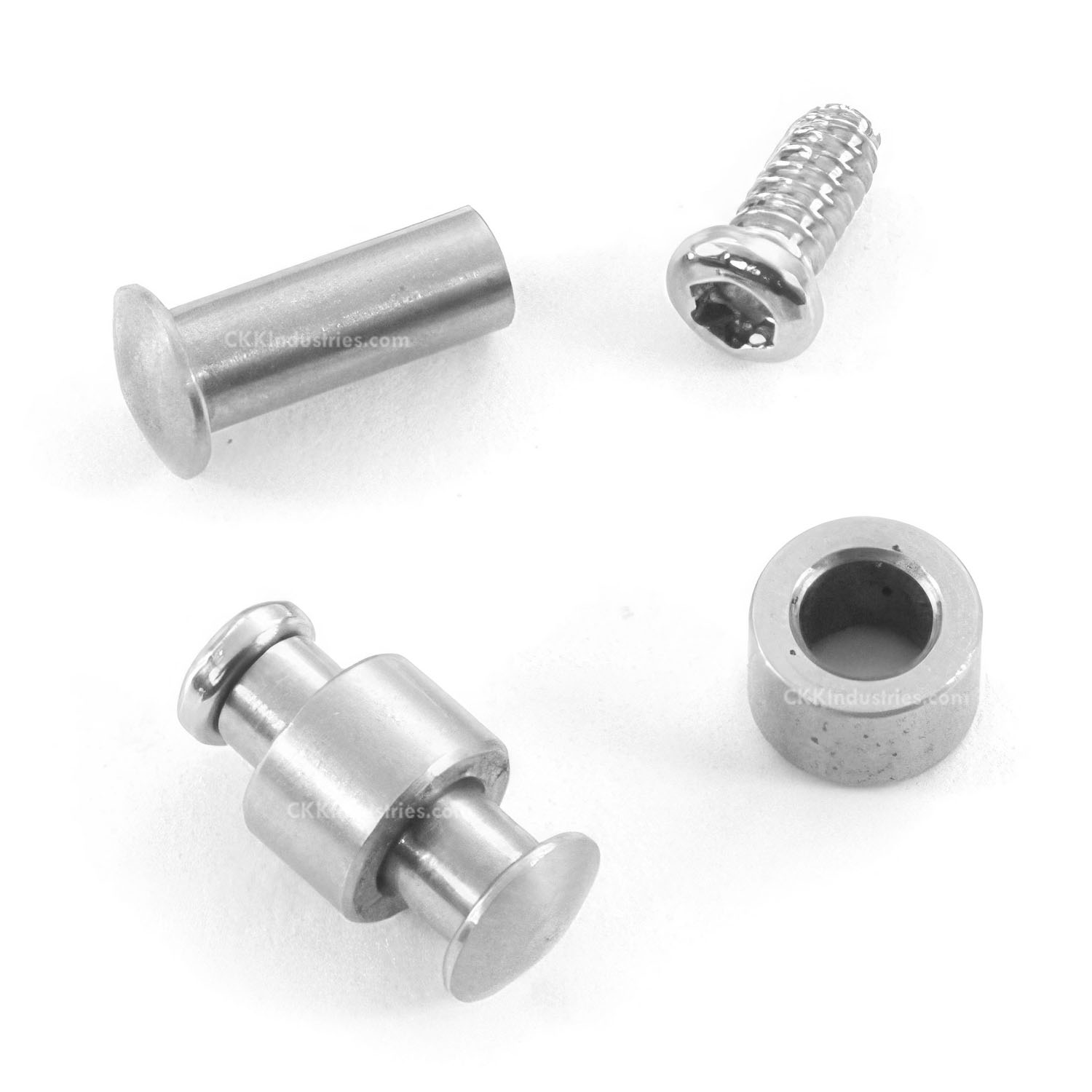

(1 Package = 1 Pivot, 1 Screw and 1 Bushing)
