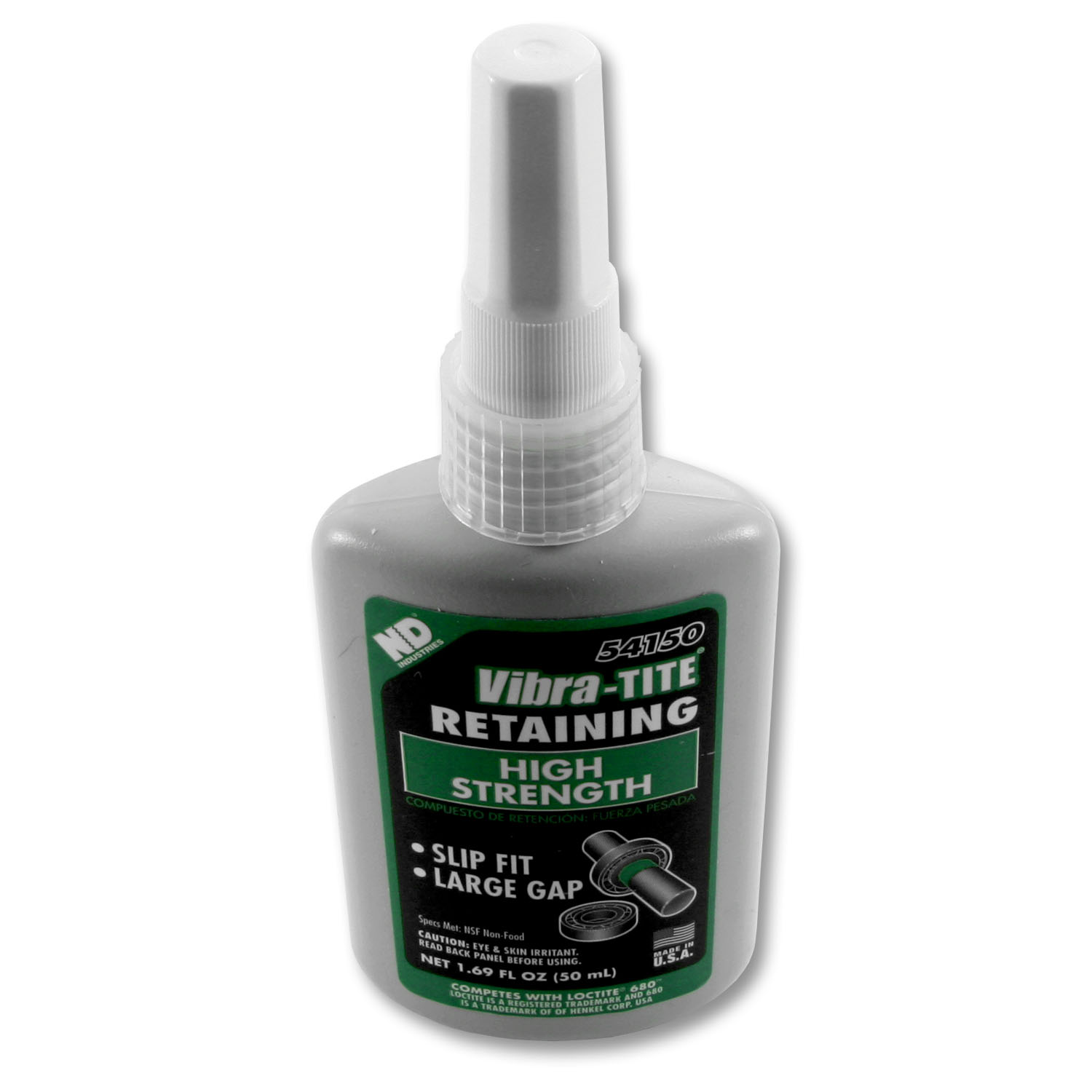

Vibra-Tite 541 Retaining Compound is a high strength, high viscosity anaerobic adhesive engineered for securing rigid mechanical assemblies. This 50 ml (1.7 oz) formula delivers a tough, reliable bond that eliminates backlash and reinforces worn components by filling gaps up to 0.015 inches. Whether you're locking keys and splines, securing bushings and sleeves in housings, or bonding rotors to shafts in low horsepower motors, this compound holds strong under demanding conditions.
Ideal for knife makers, holster craftsmen, and custom gear builders, Vibra-Tite 541 works by curing in the absence of air between tight-fitting metal surfaces. Once cured, it prevents bearing spin-out and enhances the structural integrity of your mechanical assemblies. With a fixture time of just 20 to 30 minutes and full cure in 24 hours, this green-colored compound helps you reinforce components without slowing down your build schedule.
Specifications:
Function: Retaining compound for rigid assemblies
Net Volume: 50 ml (1.7 oz)
Color: Green
Viscosity: 950 cP
Fixture Time: 20 to 30 minutes
Full Cure Time: 24 hours
Max Gap Fill: 0.015 in (0.38 mm)
Shear Strength: 3,200 psi
Specific Gravity: 1.1
Temperature Range: -65°F to 350°F (-54°C to 177°C)
Primer Required: Type T recommended for inactive metals
MSDS Number: ND2215
Standards Met: NSF Non-Food Certified
Available Sizes: 10 ml, 50 ml, 250 ml, 1 liter
Comparable To: ASI 80RC, Hernon Cylinlock 846, Loctite 680, Pacer ANL-80, Parson 3680, Rite-Lok RT80, Threebond 1377B, Titan 7680, Turbo-Lock 17
