Price: $4.95

This stud was designed by Darrel Ralph for minimum space in a folder assembly. The stud head is the same size as a 2-56 socket head cap screw. This is convenient for using the same size CRT bore side to side. The ream size is .125 for this assembly. Under the stud head is a .001 increase in size to make the stud a semi press fit to hold it in place while tightening the screw.

This assembly works for a pivot also. For those who want a .125 pivot assembly, this is the best! It has an increased diameter to press fit one side into the frame, making the screw hold while tightening the screw on the other side. This also stops the pivot screw from un-tightening from pivot spin.

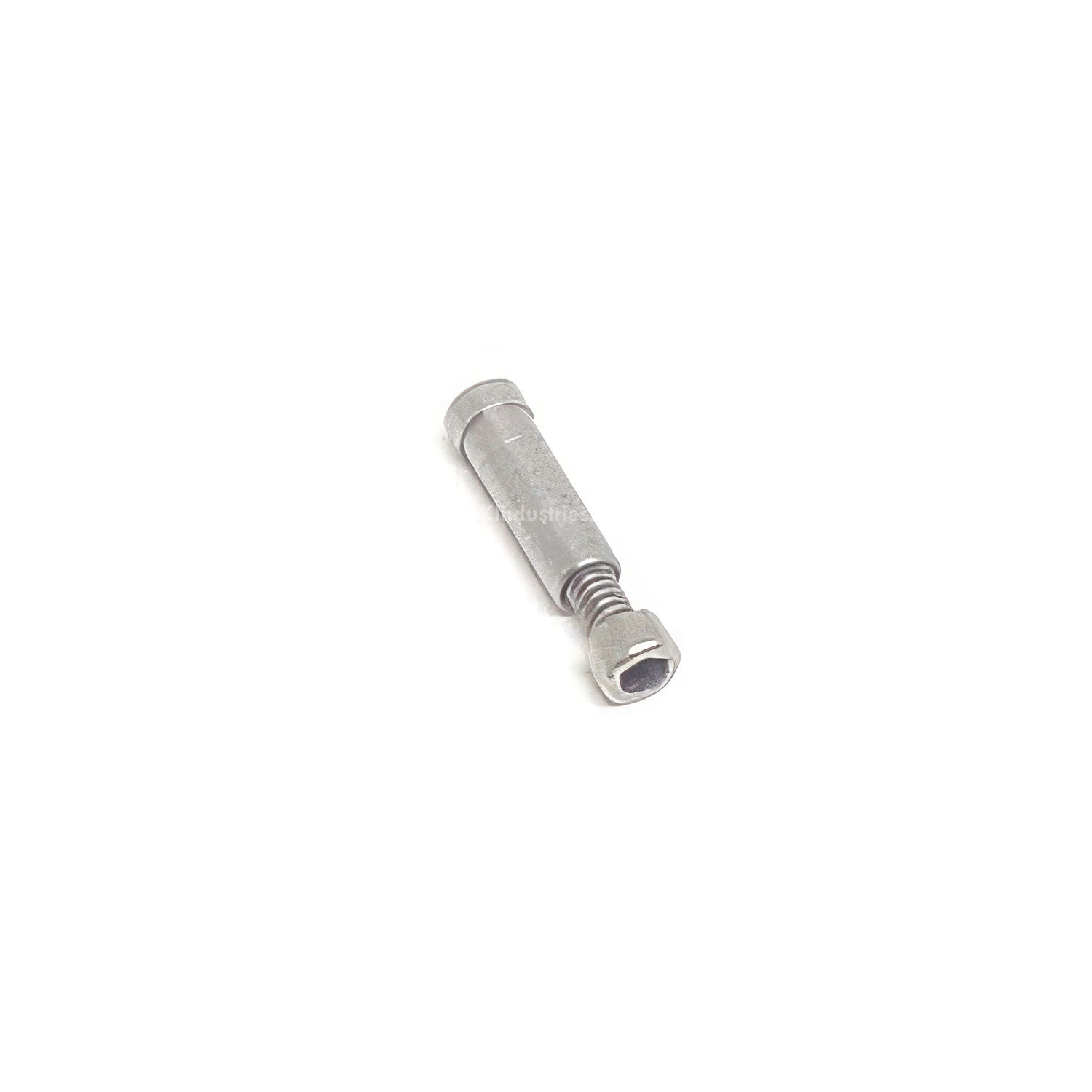

The assembly comes with a 1/4" 2-56 socket head screw and the stud.

All pivots are heat treated for low wear.

(1 Package = 1 Pivot and 1 Screw)
