Stock# CTP-612-XCF-1
Price: $149.95

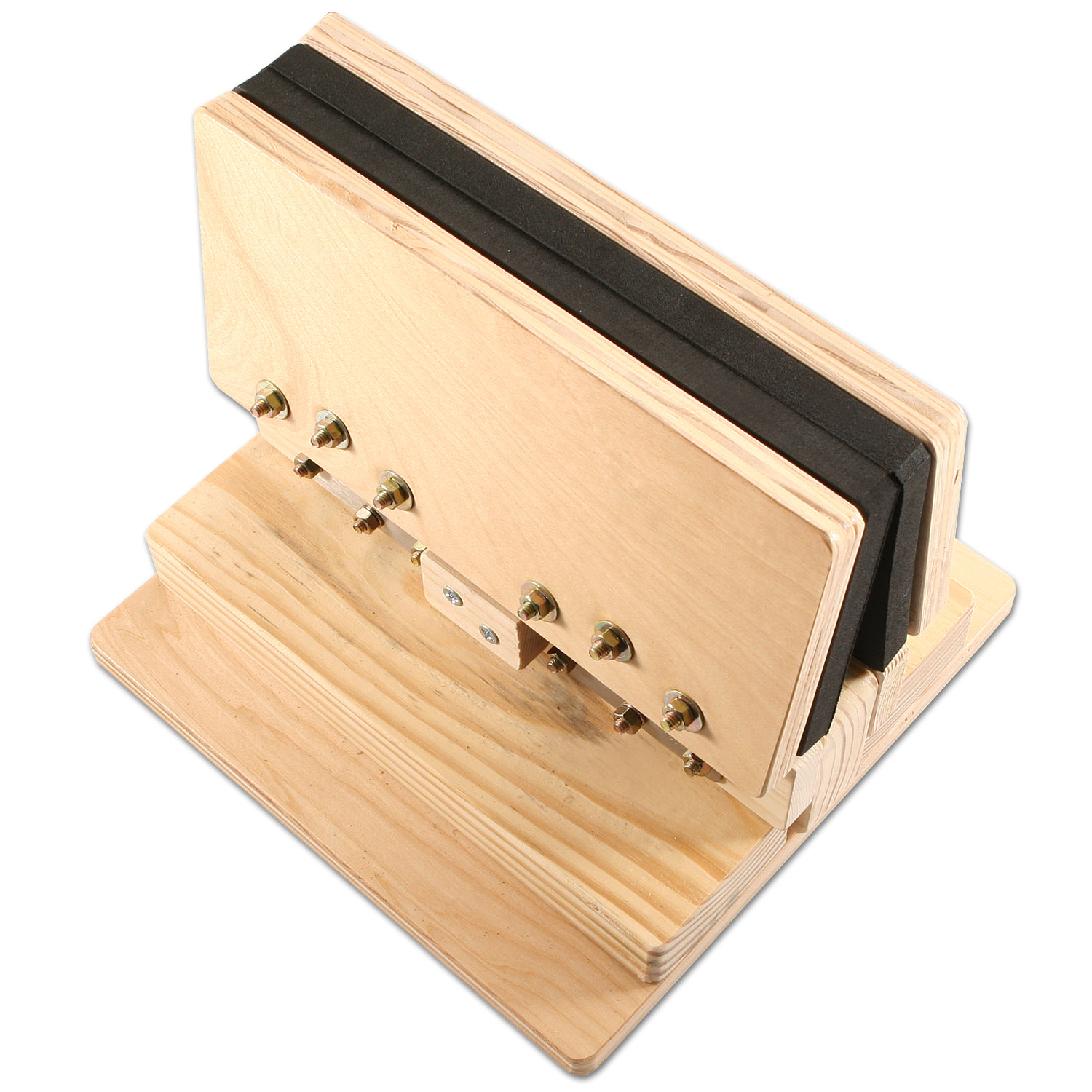

The CKK KYDEX® Taco Press design is similar to a manual book press. It was engineered for the purpose of making 1-piece, taco-style kydex holsters and sheaths. The forming pressure is applied through the use of a hinged wing fixed in place by a standard 12 inch trigger clamp or other clamping device (optional).

This model is simple in design, yet well-constructed. It is made from high-quality materials, such as 3/4
inch plywood and grade 5 hardware fasteners. The base of the unit is glued and screwed for maximum durability. Each screw on the base is recessed to minimize bench top scratching.

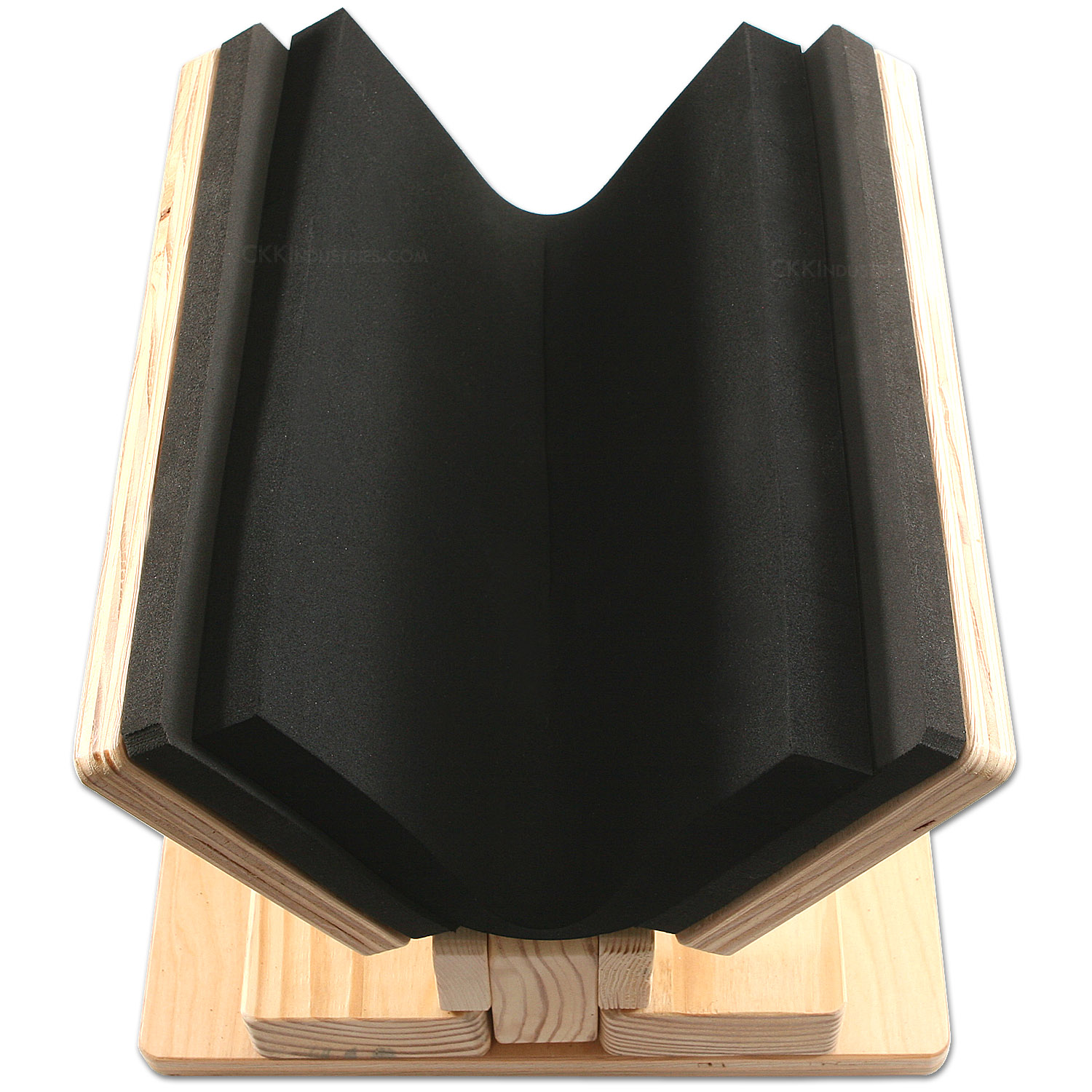

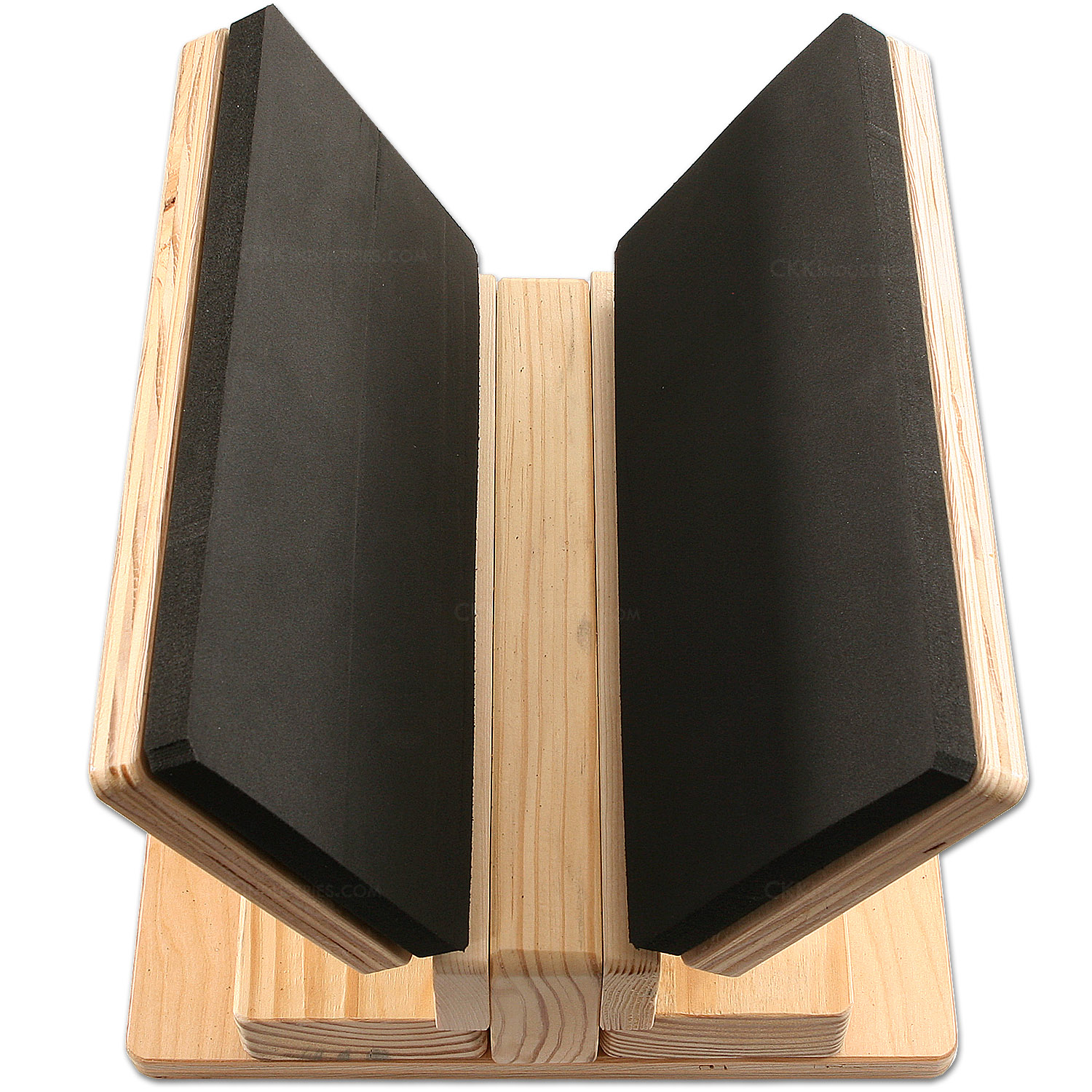

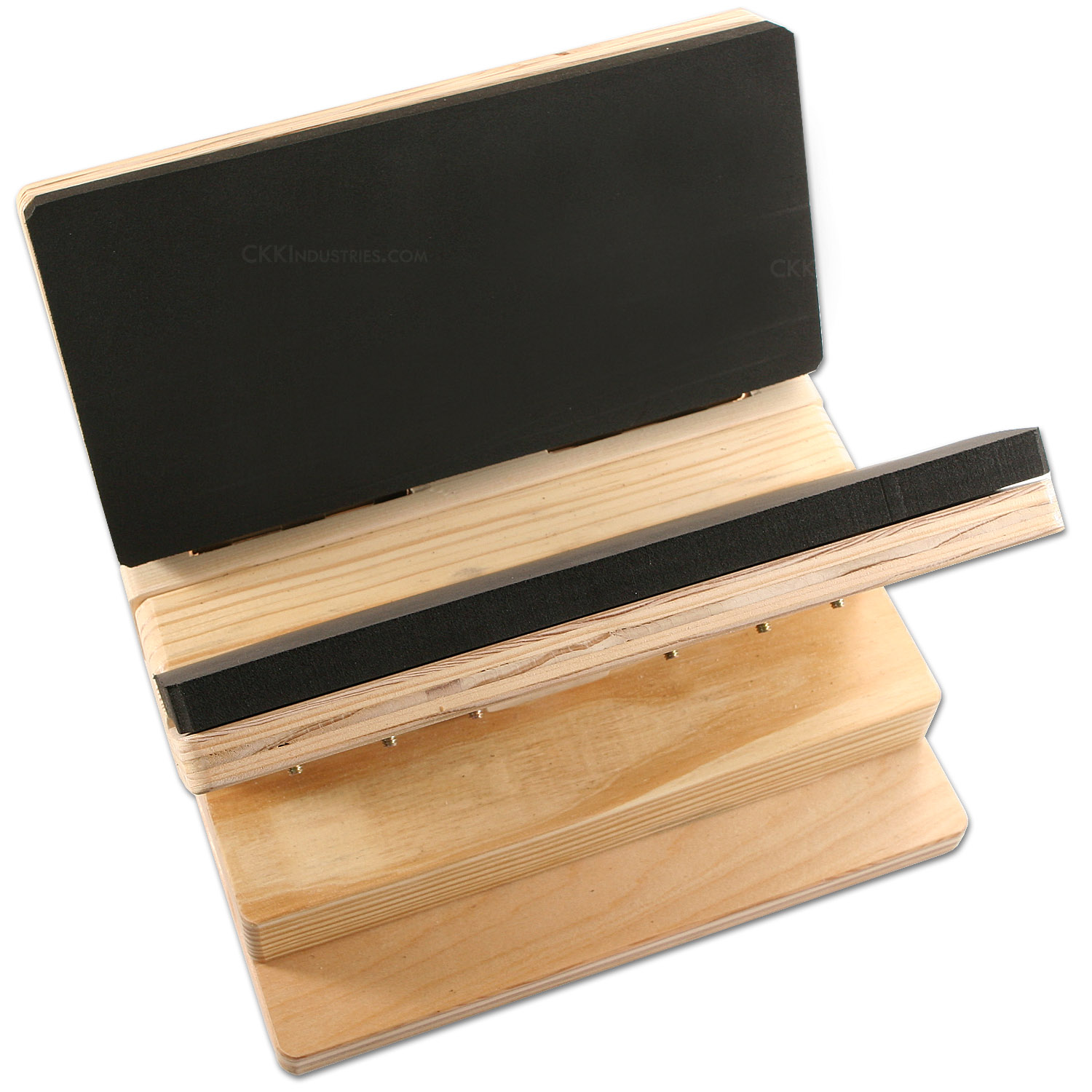

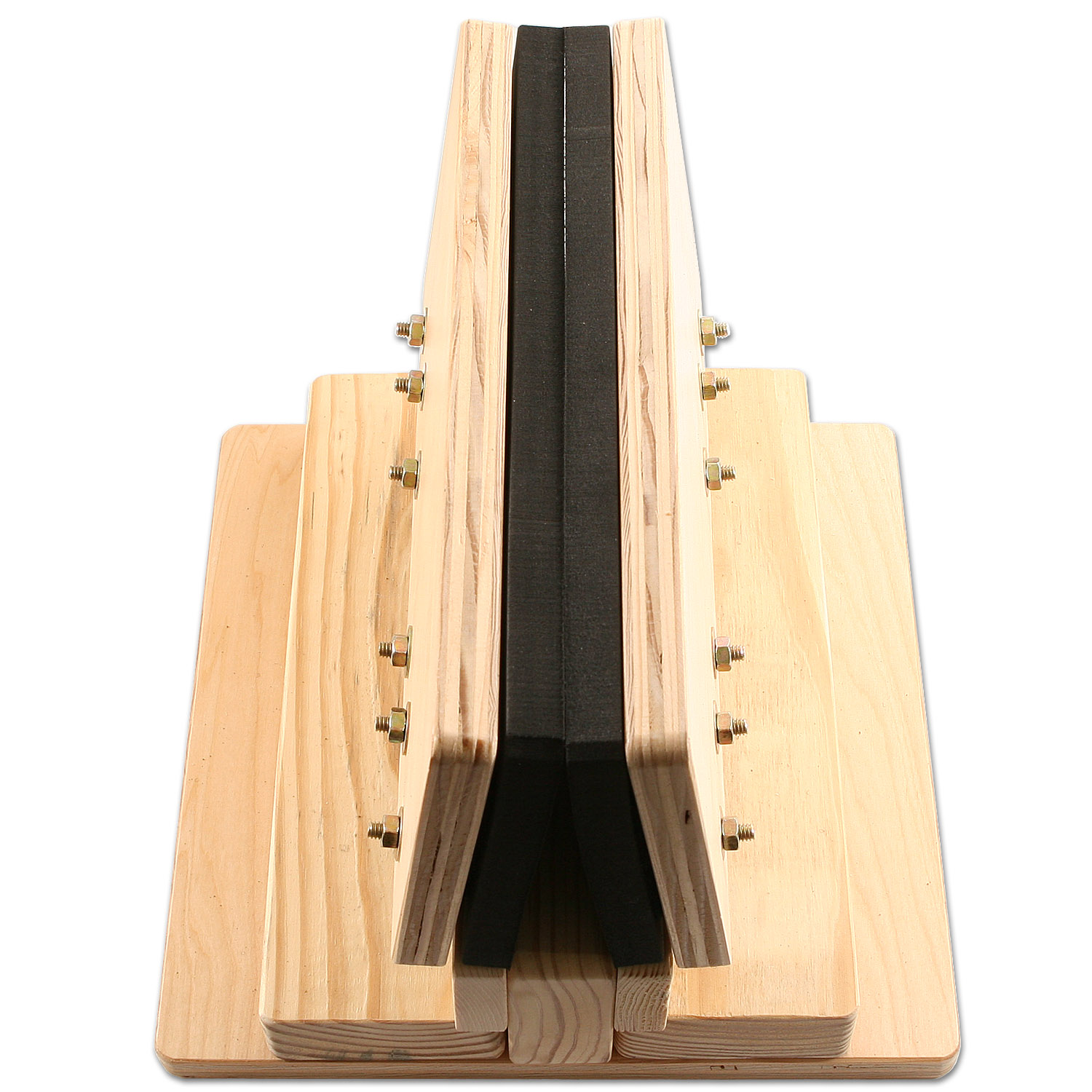

The CKK KYDEX® Taco Press has a small footprint, taking only one square foot of bench top space. The hinged wings are 6 x 12 inch each and fit a standard 12 inch trigger clamp when fully open. The base model press comes with 3/4 inch standard grade neoprene foam attached to each wing with hook & loop fasteners. Foam reversal and replacement is an easy task to perform with this design feature. This model also comes with (1) 12 x 12 inch piece of Xtreme Form center foam.

This model comes with:
(1) Pre-assembled Base
(1) Pre-assembled Bi-Wing Press Top
(2) 6 x 12 Inches Standard Grade Wing Foam (attached)
(1) 12 x 12 Inches Xtreme Form Center Foam

6 x 12 Inches
Grade 5 Hardware Fasteners (assembled)
Wing Foam - Standard Grade Neoprene (attached)
Center Foam - Xtreme Form (12 x 12) Inches
12.5 lbs
Made in USA

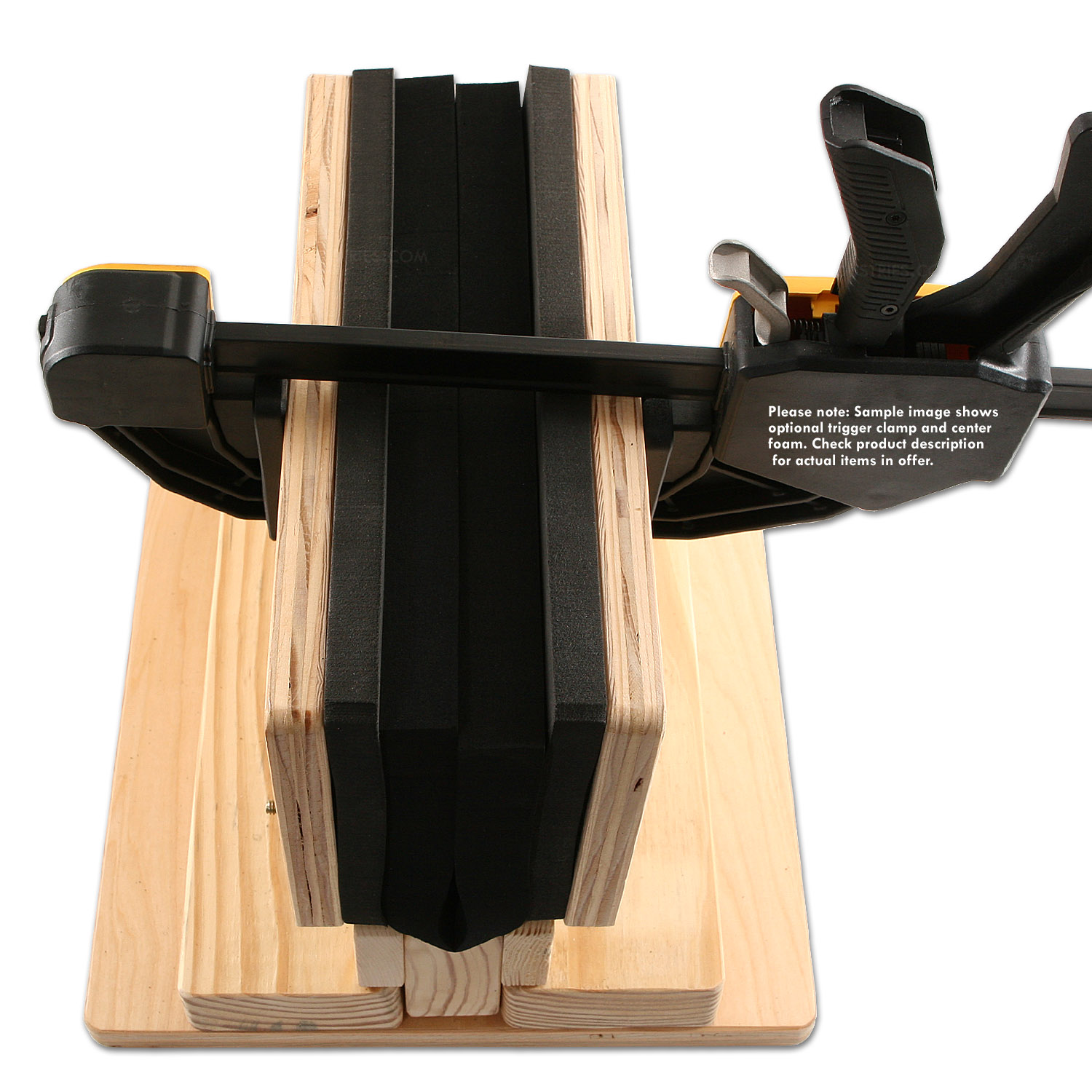

Note: The KYDEX® Taco Press sample images below may include optional trigger clamp and center foam. Please note the product description above for actual items included in this model.
